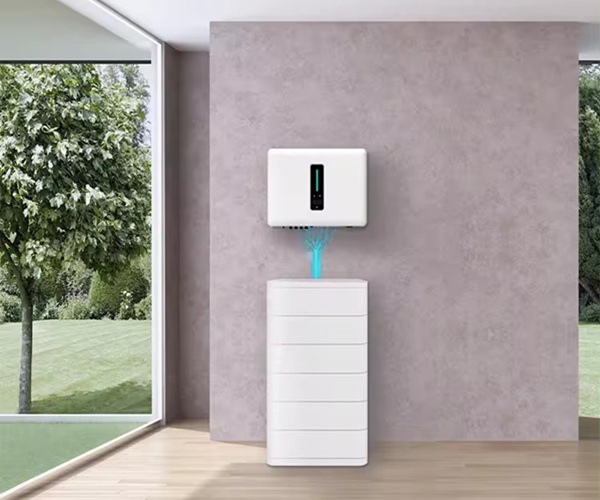

5kWh 10KW 20kWh 30kWh High Voltage Stackable Solar Battery LifePO4 Hv lithium Battery Pack Solar Energy Storage System
CE-LFP30kWh
Key attributes
Industry-specific attributes
Output Power Range: 20-50 kWh
Grid connection: Off grid, Hybrid grid
Other attributes
Battery Type: LiFePO4
System Type: Stackable
Model Number: CE-SPES15kWh/HV CE-SPES 30kWh/HV
Brand Name: CMB Energy
Place of Origin: Shenzhen, China
Dimension (L*W*H): 670*330*1329MM
Weight: 218kg
Type: Split
Communication Port: CAN
Protection Class: IP54
Product name: LifePO4 Lithium Battery
Application: Electric Power Systems
Voltage: 57.6v
Cycle life: 6000 Times
OEM/ODM: Acceptable
Warranty: 10 Years
Nominal Capacity: 9/12/15/18/21/24/27/30kwh
Protection: Built in Smart BMS
Features: Long Cycle Life
Certification: CE,MSDS,UN38.3
|
Module Type |
LFP 9kWh |
LFP 12kWh |
LFP 15kWh |
LFP 18kWh |
LFP 21kWh |
LFP 24kWh |
LFP 27kWh |
LFP 30kWh |
|
Usable Energy |
8.64kWh |
11.52kWh |
14.40kWh |
17.28kWh |
20.16kWh |
23.04kWh |
25.92kWh |
28.80kWh |
|
Battery Module |
LFP 3000 / HV : 57.6V 50Ah |
|||||||
|
Number of Modules |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
|
Nominal Voltage |
172.8V |
230.4V |
288V |
345.6V |
403.2V |
460.6V |
518.4V |
576V |
|
Operating Voltage Ranges |
135-197.1V |
180-262.8V |
225-328.5V |
270-394.2V |
315-459.9V |
360-525.6V |
405-591.3V |
450-657V |
|
Nominal Dis-/Charge Current |
25 / 50A |
|||||||
|
Max. Charge Voltage |
197.1V |
262.8V |
328.5V |
394.2V |
459.9V |
525.6V |
591.3V |
657V |
|
Weight |
102kg |
131kg |
160kg |
189kg |
218kg |
247kg |
276kg |
305kg |
|
Dimension(mm) |
670*330*697 |
670*330*855 |
670*330*1013 |
670*330*1171 |
670*330*1329 |
670*330*1487 |
670*330*1645 |
670*330*1803 |
|
Safety |
CE,UN38.3,IEC62619,IEC63056,IEC62477 |
|||||||
The lithium iron phosphate battery (LiFePO4 or LFP) is the safest of the mainstream lithium battery types. A single LFP cell has a nominal voltage of 3.2V. A 57.6V LFP battery consists of 18 cells connected in series. LFP is the chemistry of choice for very demanding applications.
Some of its features are: Rugged - It can operate in deficit mode during long periods of time. High round trip efficiency. High energy density - More capacity with less weight and volume. High charge and discharge currents - Fast charges and discharges are possible. Flexible charge voltages.
