HomeSmart Energy StorageEnergy Storages Systems5kw LiFePo4 battery 48V 100ah Power energy wall 48V 100ah Lithium battery pack For Home Energy Storage System
【Resources】

Product Datasheet

【Product name】

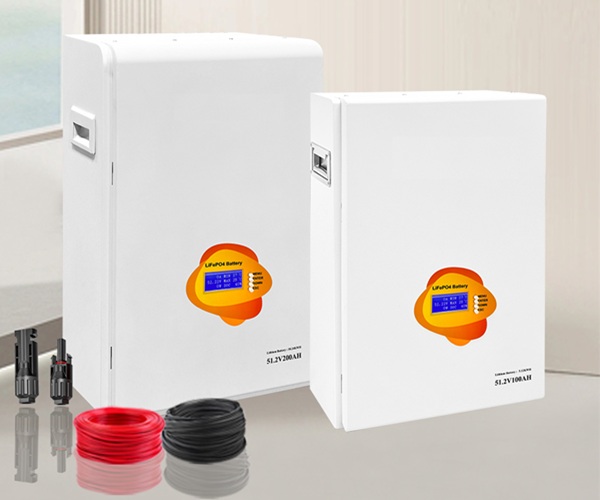

5kw LiFePo4 battery 48V 100ah Power energy wall 48V 100ah Lithium battery pack For Home Energy Storage System

【Product model】

CESS100Q

【Product description】

This power supply adopts the car-grade lithium iron phosphate square battery as the main energy storage component, which has excellent battery performance and excellent consistency, and has a long cycle life, which can better meet the needs of users. The power shell is  made of thickened steel plate with electrostatic spraying to ensure a solid and reliable battery structure. The built-in high-quality battery intelligent management system ensures the stability and reliability of the power supply. In addition, the power output port adopts a quick-plug connector, which is convenient for users to operate and has strong over-current capability. At the same time, it is equipped with Canbus/RS485 communication interface, which can be compatible with various mainstream brands of inverters in the market, providing greater compatibility and flexibility.

【Resources】

Product Datasheet

【Product introduction】

Product Specifications

NO

Items

Specification

Remark

1

Nominal Voltage

51.2V



3

Capacity

200AH (10.24KWh)



5

Charge limit voltage

58.4V

Max

6

Working Voltage

44.8 ~58.4V



7

Standard charging current

40A

0.2C

8

Maximum charging current

100A

Based on the working current of

BMS

9

Discharge cut-off voltage

44.8V



10

Standard discharge current

40A

0.2C

11

Maximum discharge current

100A

Based on the

working current of BMS

13

Cell model

LFP 3.2V 50Ah



14

Shell main material

cold rolled steel



17

Dimensions

850*625*185±3mm(without mounting angle)



18

Battery weight

100kg±2kg

Installation configuration not included



19



Range of working temperature

Charge: 0C~45℃



At10%-90%RH

Discharge: -20℃-60℃



Note: For the above test items, the test conditions should comply with all the contents of the 3rd main item "Test Conditions". If any of the working conditions of the battery exceeds the scope of the 3rd main item, then the performance of the battery will have a certain deviation.
